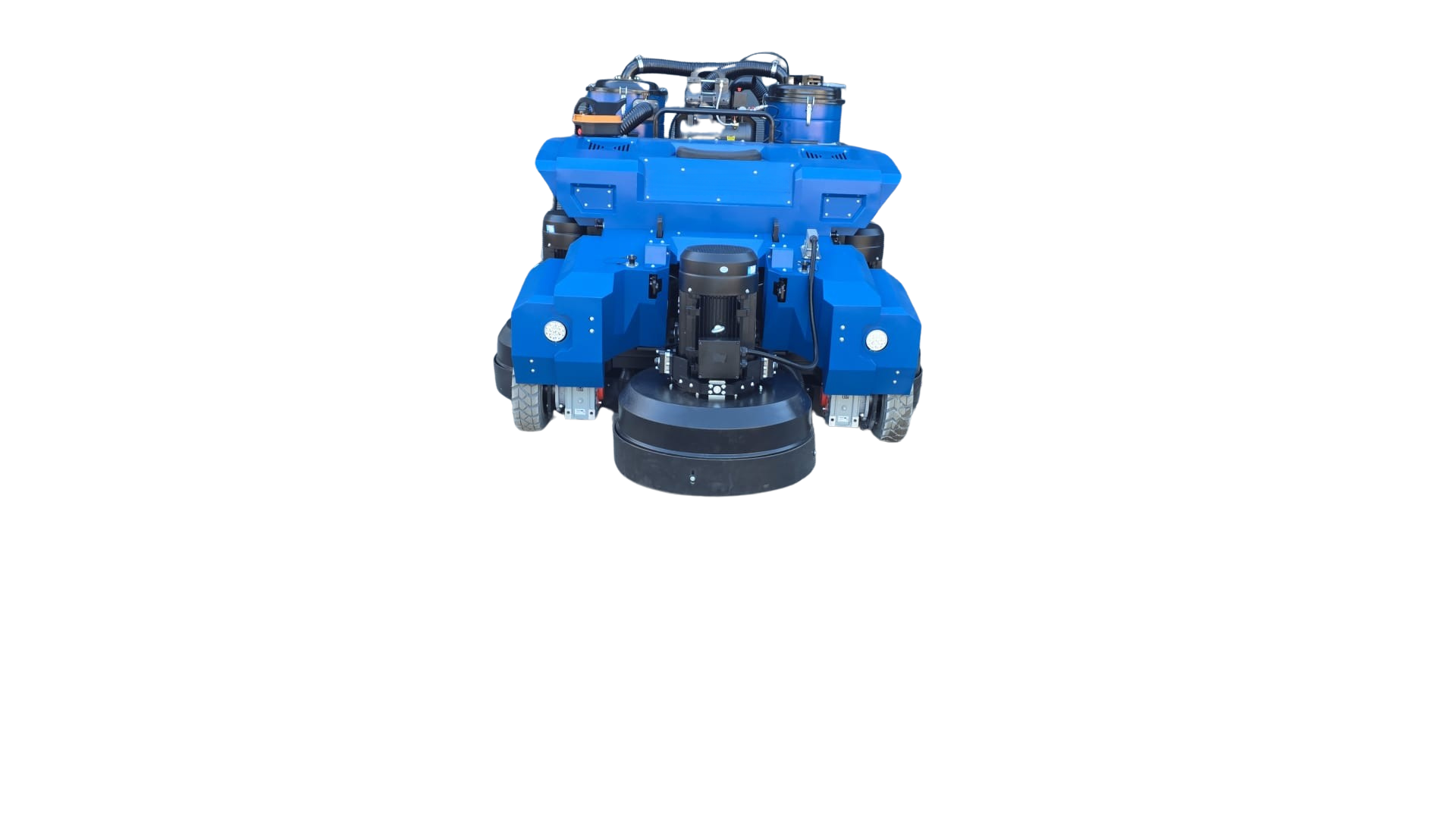

RC2160 - Planetary remote control grinder with hydraulic system
|
Motor |
Polishing 15 kW *3= 45 kW, wheel 1,5 kW*2=3 kW, hydraulic 1,1 kW 10 Mpa, Inverter 15 kW*3=45 kW |
|
Power |
380V |
|
Current |
90 A |
|
Rpm tool |
0-1800 rpm |
|
Rpm |
0-200 rpm |
|
Weight |
2150 kg |
|
Heads |
Tool holder 12x280 mm, with 72 tools |
|
Working width |
2160 mm |
|
Gear |
Equipped with hydraulic system, auto raise / lower grinding heads variable speed soft start, planetary gear drive, no belt and dual servo motor |
|
Size |
2295*2220*1335 mm |
|
Included |
Inverter, dust intake, LED lights |
|
Accessories |
Disc, resin disc holder, plug, rubber dust guard and tool kit. |
|
Optional |
Vacuum 10 CV 320 mbar air flux 412 CFM 0,3 μm 270 kg |
Code:RC2160 |
